Bromar Mother Bin

Winner! Best Australian Agricultural Machine, 2014 Eyre Peninsula Field Days

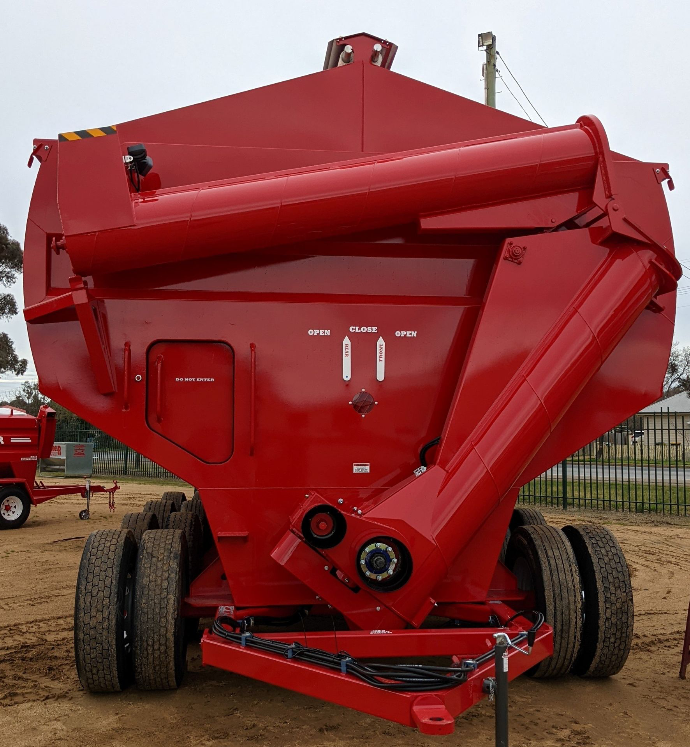

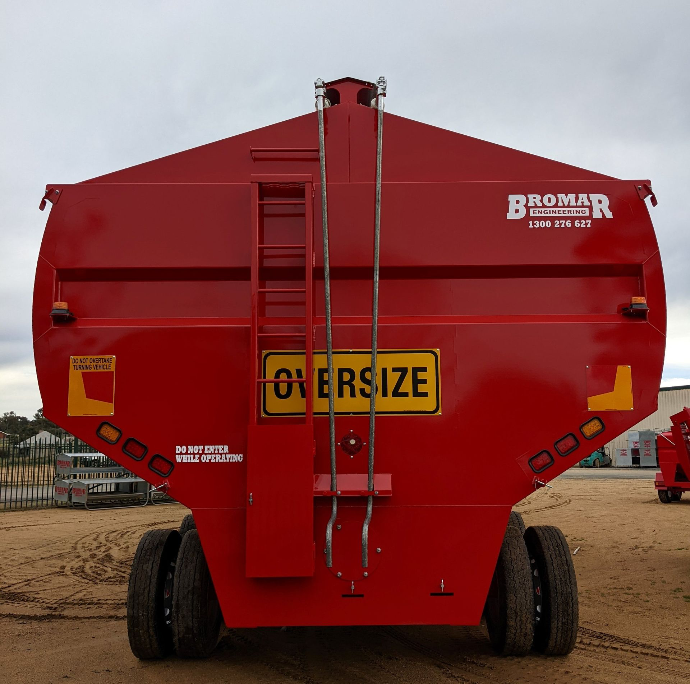

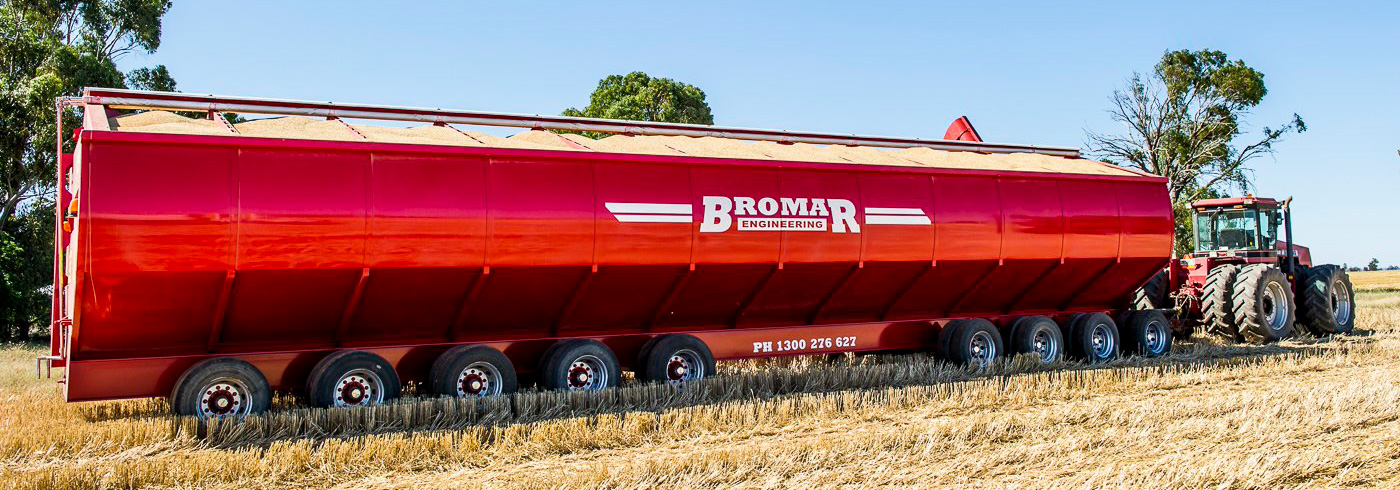

The Bromar Super Duty Mother Bin looks extremely sleek with its curved sides giving this bin its massive amount of strength.


There are five sizes available in the Bromar range of Super Duty Mother Bins. Ranging from 85 tonnes to a massive 150 tonnes.

Maximise harvest efficiency with high-capacity grain storage

Key Product Features

Standard on all Bromar Mother Bins.

  • Auger lights
  • LED tail lights
  • Inside bin light
  • Flags and flag holders
  • Sight glasses - front and rear

Additional Features

Enhancing functionality for optimal performance.

  • 460UB chassis
  • 150HP driveline
  • 125mm Solid beam axles (full width)
  • Floor auger cut offs, so front auger can be emptied for folding
  • Double cut offs in 115T, 130T, 140T & 150T so bin can be emptied from the centre
  • Blending capabilities
  • 16 Inch auger - tall for clearing trucks
  • Heavy duty segmented auger flight
  • Two roll tarps that roll up to the top and are shielded with a steel hood
  • Tarps are made from heaviest taut liner material
  • Dual wheels for carrying capacity when wet

Mother Bin Models & Dimensions

Model

Capacity (m³​)

Length (m)

Width (m)

Height (m)

Side Height (m)

Axles

MBT 85

108

13.30

4.30

4.20

3.45

5

MBT 115

139.5

16.10

4.30

4.20

3.45

7

MBT 130

155

17.60

4.30

4.20

3.45

7

MBT 140

169

19.50

4.30

4.20

3.45

8

MBT 150

185

21.00

4.30

4.20

3.45

9

Ranging from 85 tonnes to a massive 150 tonnes, our Mother Bin has you covered every harvest.

Contact us today to order your Bromar Mother Bin.
