Capacity
Two cubic metres.

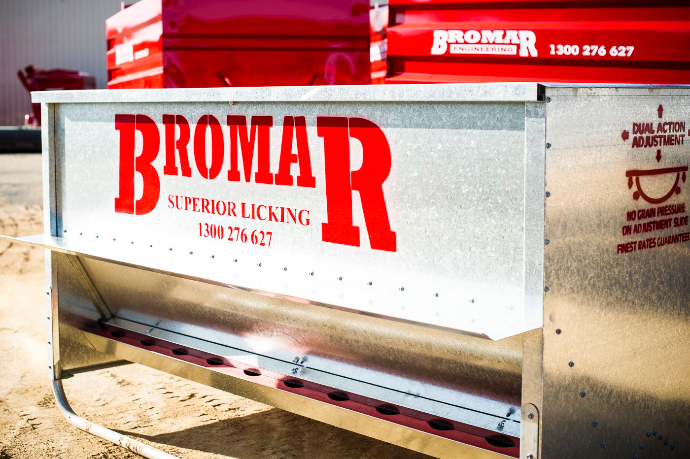

To adjust the feed rate - gal slide
- Loosen the three nuts.
- Move the gal slide to the feed rate.
- Retighten nuts.
How to adjust the red plastic insert
- Undo the three nuts and remove the nut/washer and gal slide.
- Loosen the second nut on the red plastic insert.
- Adjust the red plastic insert to the feed rate you require.
- Tighten the nuts.
- Replace the gal slide, washers and nuts.
- Position the gal slide to the feed rate you require.
- Tighten the nuts.
Note. Make sure bolts are clean to achieve correct tension.
